| 品牌：一洋五金Driflex | 型号：LT-（8-19）S | 内径：20.83-21.34mm |
| 外径：25.20-26.70mm | 规格：G3/4“ | 材质：镀锌钢带+PVC+棉线 |
| 工艺：机加工 | 适用范围：电力、航空航天、造船厂、地铁隧道建设、消防工程、制冷设备、冶金、机械设备、锅炉厂、电梯制造 |

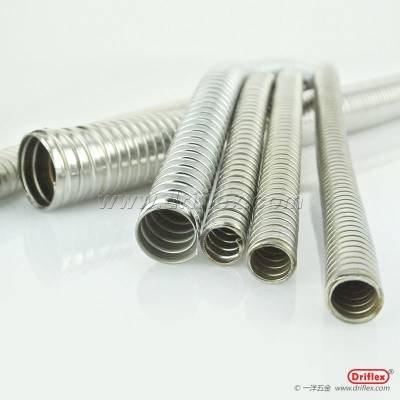

不锈钢双勾软管
Model: FM-12ISS
Description:
不锈钢制成,结构牢固,绝缘性能和防水性能。挠性好，高抗拉、抗破环性强、抗疲劳性能高。 耐高温、耐冲击、耐腐蚀强，可抵抗不当扭转损坏等特点。
Part No | Normial Size | Inner Diameter mm | Outside Diameter mm | O.D After PVC Coated | Length Of Each Roll | |||
Interlocked | Squarelocked | M | ||||||
| FM-10ISS | 3/8" | 12.5 | 15.7 | 18.0 | 16.6 | 50 | ||
| FM-11ISS | 1/2" | 15.7 | 19.1 | 21.3 | 20.0 | 50 | ||
| FM-12ISS | 3/4" | 20.8 | 24.3 | 26.7 | 25.5 | 50 | ||
| FM-13ISS | 1" | 26.0 | 30.0 | 33.2 | 31.6 | 30 | ||
| FM-14ISS | 1-1/4" | 35.0 | 40.0 | 42.2 | 42.0 | 30 | ||
| FM-15ISS | 1-1/2" | 40.0 | 45.0 | 48.0 | 47.0 | 20 | ||
| FM-16ISS | 2" | 51.0 | 56.0 | 59.6 | 59.0 | 10 | ||
